01The AutoSeal hemostasis valve attached at interventional devices luer end is intended to maintain a seal around interventional device with an outer diameter < 0.10” (2.54mm) during interventional procedures.
02The guide wire torque provides an aid for steering the guide wire (OD between 0.010”and 0.018”) within the vascular anatomy.
03The guide wire introducer (20G,1OOmm) is used to introduce guide wire(OD between 0.010”and 0.018”) into a vessel commonly known as a introducer needle.

COMPANY	HEMOSTASIS VALVE	FEATURES
Curatia	AutoSeal	1.Seal Pressure 500psi 2.One hand Auto Seal operation 3.Dual Seals to prevent leak 4.Max bore size 0.100(2.54 mm)
Goodman	Okay II	1.Seal Pressure 500 psi 2.One hand w.1 step seal operation 3.Dual seals to prevent leak 4.Max bore size 0.105(2.67mm)
Guidant	Copilot	1.Seal Pressure 400 psi 2.One hand w.1 step seal operation 3.Dual seals to prevent leak 4.Max bore size 0.096(2.44 mm)

COMPANY

HEMOSTASIS VALVE

FEATURES

Curatia

AutoSeal

1.Seal Pressure 500psi

2.One hand Auto Seal operation

3.Dual Seals to prevent leak

4.Max bore size 0.100(2.54 mm)

Goodman

Okay II

1.Seal Pressure 500 psi

2.One hand w.1 step seal operation

3.Dual seals to prevent leak

4.Max bore size 0.105(2.67mm)

Guidant

Copilot

1.Seal Pressure 400 psi

2.One hand w.1 step seal operation

3.Dual seals to prevent leak

4.Max bore size 0.096(2.44 mm)

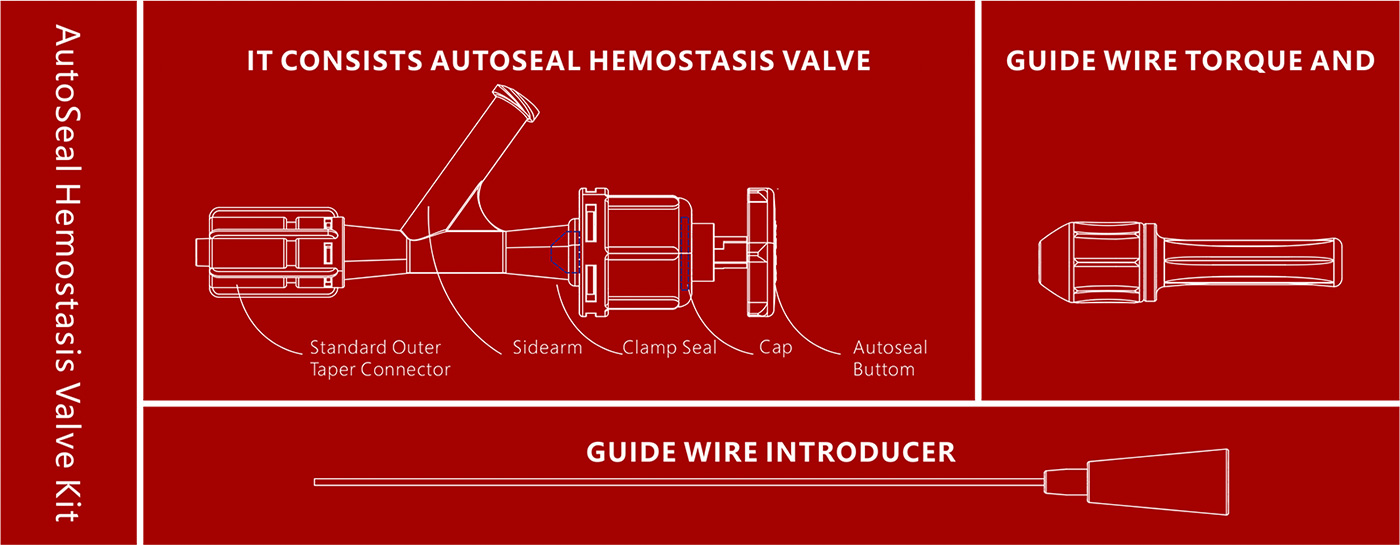

Each kit includes: a hemostasis valve; a guide wire torque and a guide wire introducer.
Order Number: 0109500
Shelf Life: 3 years

AutoSeal™Hemostasis Valve Kit
